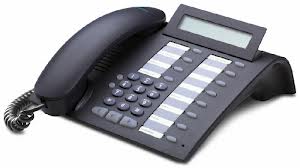

hipath 3250    optipoint 500 economy

Τηλεφωνικά Κέντρα hipath 3250 siemens


The Siemens HiPath 3250 is a small system for ISDN lines only. Its initial configuration is for 2 ISDN2e lines (4 channels), 4 digital & 4 analogue extensions. It is possible to add a further 4 extensions using optiPoint adaptors.


System features

The HiPath 3250/3150 system offers a wide range of features.

Selected features

l Caller list. Unanswered internal and external

calls are recorded on system

telephones with a display if external calls

contain a directory number (ISDN) and

internal calls are transmitted with the

caller’s name. The calls are entered in a

list with a date and time stamp and the

number of call attempts is recorded. A

callback can be initiated directly from

this list.

l Do-not-disturb/”silent call”. Users can

block incoming calls. Callers hear the

busy signal when “do-not-disturb” has

been activated. Authorized users (attendants,

for example) can override this

feature. Acoustic signaling of calls can be

deactivated on system telephones so

they are only indicated on the display.

l Call pickup. Calls can be picked up on

users’ own telephones within a call pickup

group or selectively for specific


l Override. Authorized stations can intrude

on other users’ calls in progress.

l Classes-of-service Different access authorizations

can be assigned to each

user, with a distinction being made


– full toll access

– partial toll access

– no toll access

l Broadcast intercom call to system telephones

or over external loudspeakers (in

a waiting room, for instance)

l Call cost logging for each terminal or

each trunk in the summation memory.

Call duration display is used for analog lines

without call charge pulses.

l Group call For groups of up to 8 users.

Individual stations can temporarily leave

the group.

l Line keys (MULAP)

The following flexible setups are possible

with line keys:

– teams,

– executive/secretary functions,

– feature handset (gigaset) in parallel

with an optiset E telephone on a single

directory number (only in conjunction

with HiPath cordless).

l Internal telephone book. All extensions

are stored with their associated names in

the system’s internal telephone book.

They can be searched and dialed directly

via the display on system telephones.

l Speed dialing individual/system. For

all services it is possible to store up to 10

destinations on each telephone individually

and up to 300 destinations centrally

in the system.

l Toggling between two existing


l Text messages. You can send users predefined

(e.g. “Visitor waiting”) or personal

short messages (optiset E memory

only) via the display.

l Internal texts to the feature handset.

When HiPath cordless is used it is also

possible to send internal text messages

to the feature handset.

l Advisory messages can be left on your

own telephone (e.g. Back at:….).

l Project code. Telephone costs can be assigned

to a specific procedure or project

by entering the project code (max. 11


l Call number suppression. With ISDN

connections, callers can suppress the

display of their directory number on the

called party’s terminal either on a crosssystem

basis or temporarily.

l Distinctive call signaling for internal

calls, external calls, recalls, and callback


l Add-on ringing. Call signaling simultaneously

at several telephones

l Connection for door interface. Calls

from the entrance telephone can even

be routed to an external destination by

using external call forwarding

l Automatic redial (expanded) for the

last three external call numbers
